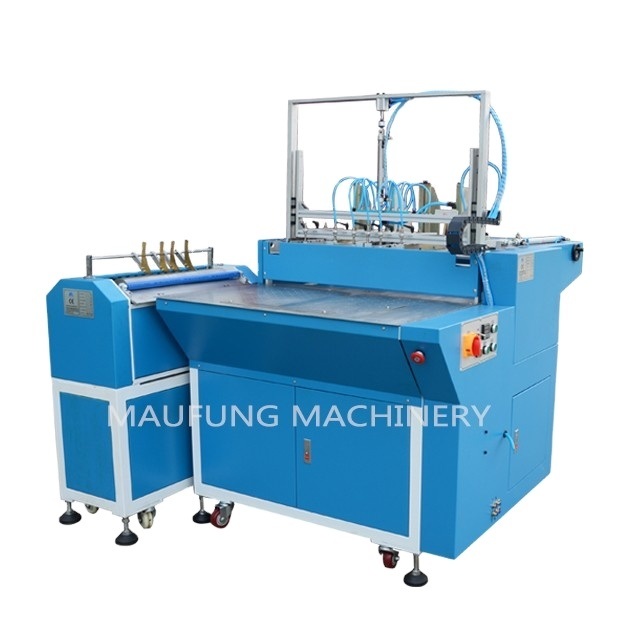

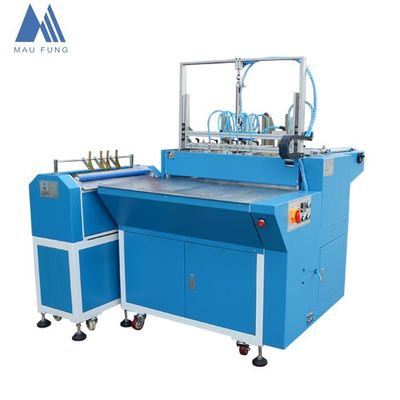

MF-SCM500A Semi Auto Case Maker
This machine is primarily used for covering and folding various notebooks, photo books (photo albums), folders, certificates, and hardcover books. The process is completed efficiently on both sides simultaneously by a single operator, making it ideal for hard cover post-press binding applications.
Specifications
| Model |
MF-SCM500A |
| Power Supply |
380V/220V, 50HZ |
| Mainframe Power |
5.2kw |
| Work Speed |
1-3PCS/minute |
| Paperboard Thickness |
1-4mm |
| Hard Case Spine Width (Min) |
9mm |
| Open Book Case Size (Max) |
780x430mm |
| Open Book Case Size (Min) |
140x140mm |
| Paper Thickness |
80-200g |
| Machine Dimensions (L×W×H) |
1780×1620×1400mm |
| Packaging Size (LxWxH) |
2100*1300*1830mm |
| Machine Weight |
N.W 550KG; G.W.700KG |
Main Features
- Automatic paper feeding system with pneumatic auto foot switch
- PLC operating system for precise control
- Compatible with hot glue (animal glue/Jelly glue)
- Quick product changeover with fast adjustment speed
- Automatic cardboard thickness adjustment
- Size adjustment via rotating handle wheel
- Light tube inside working table for accurate positioning

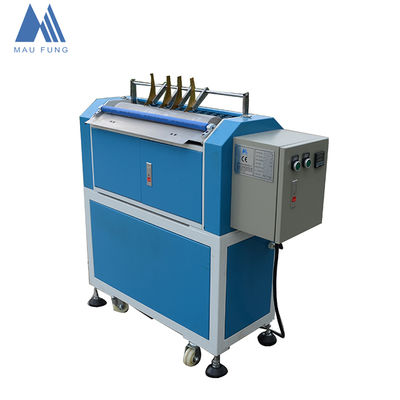

Optional Hot Melt Gluing Machines
MF-GM500 Hot Melt Gluing Machine
Max Coating Width: 500mm
Normal Gluing Thickness: 80-200g
Gluing Speed: 20-40pcs
MF-720 Hot Melt Gluing Machine
Max Coating Width: 720mm
Normal Gluing Thickness: 0.15-0.35mm
Gluing Speed: 5-25m/minute
Related Equipment
MF-FAC390A Auto Book Casing In & Joint Forming Line
MF-SEM450 Semi-Automatic Elastic Band Inserting Machine
MF-FAC390 Fully Auto Case In Machine
MF-PCM380EV Pressing & Creasing Machine (Enhanced version)
MF-SKJ380AS Hard Cover Book Case In Machine
Certifications
We continuously upgrade product quality and after-sales service while focusing on self-development. Adhering to "People-oriented Principle, Quality for Survival Strategy, Credibility for Development Strategy" and "Rooting in Quality, Developing via Brand" strategy, we have obtained CE certification, multiple patents, and recognition as a National "High Tech Enterprise".
Frequently Asked Questions
1. Is your company a factory or trading company?
Our company is a factory.
2. What about the samples?
You can visit our factory if you'd like.
3. How to install the machine?
After-sales Service Provided:
- Online support
- Free spare parts
- Field installation, commissioning and training
- Field maintenance and repair service
- Video technical support
4. What if the machine can't work?
We are available 24 hours online.
5. How long is the warranty period?
One year.
6. What certificates do your machines have?
Our machines all have CE certificates and Certificates of origin.
